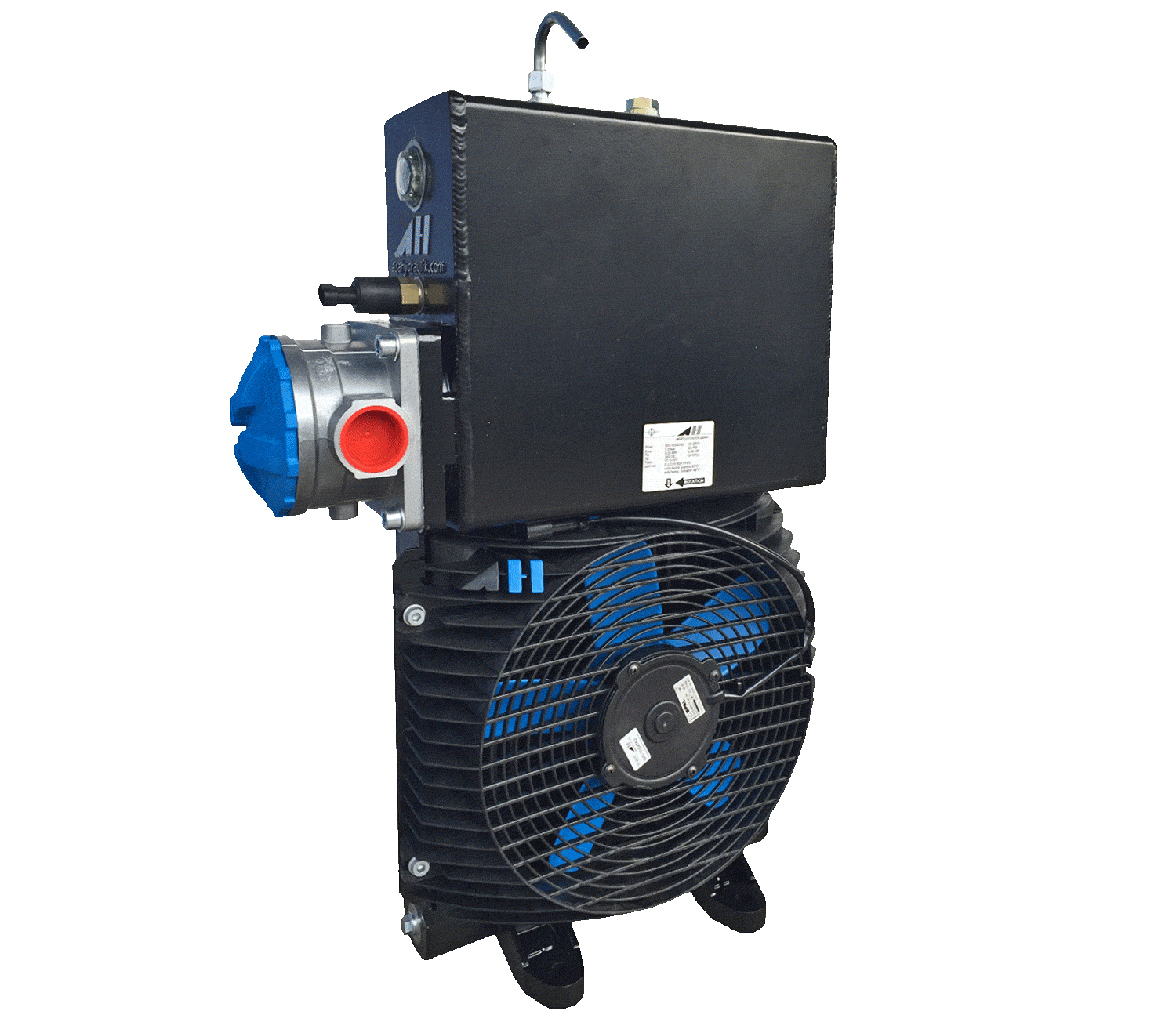

for Mobile Machinery
12 or 24 V DC
with or withouth filter and oil temperature sensor
working pressure: 1,2 bar
radiator material: aluminium
quality aprooved by world largest´s concrete mixer producers like CIFA, LIEBHERR, INTERMIX and many others
| Parameter | Dimension | ECO 11 12 V DC oiltank with filter | ECO 11 24 V DC oiltank with filter |
|---|---|---|---|
| El.motor power | kW | 0,25 | 0,25 |
| Current | A | 19,60 | 9,70 |
| Revolution | min-1 | 2850 | 2850 |
| Air flow | kg/s | 0,62 | 0,62 |
| Noise level | dB | 79 | 79 |
| Weight | kg | 27,5 | 27,5 |
| Tank capacity | ltr | 12 | 12 |
| Tank capacity | ltr | 12 | 12 |

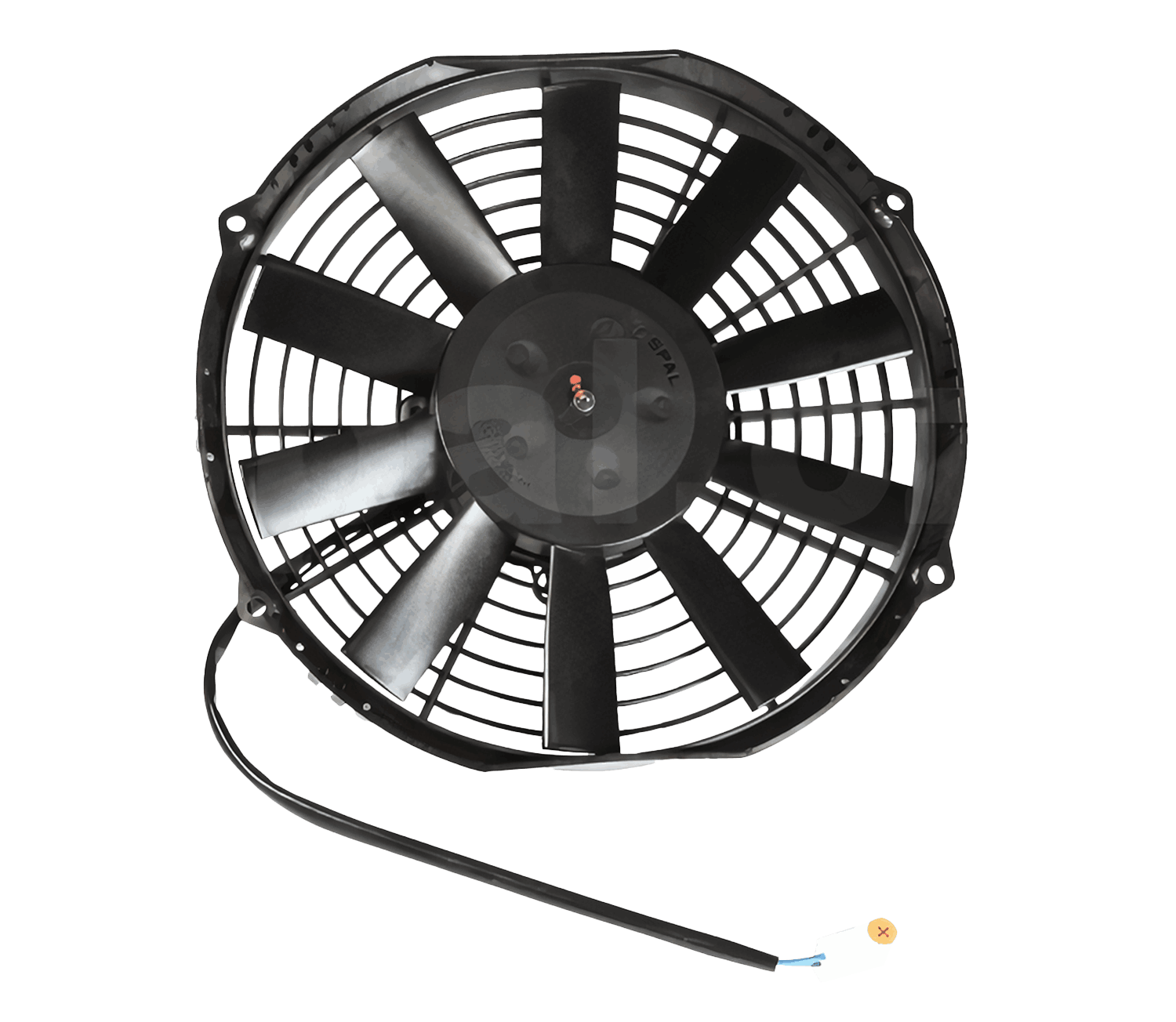

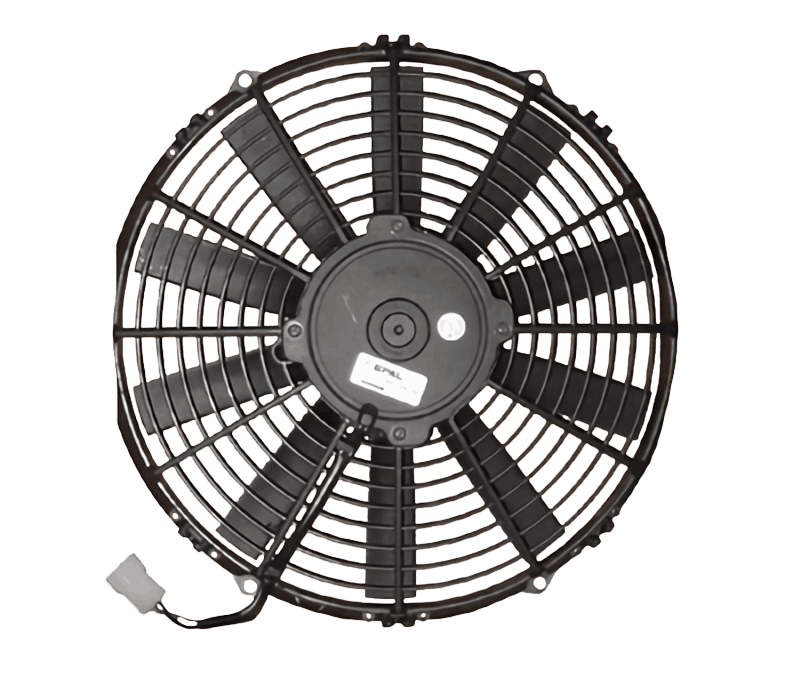

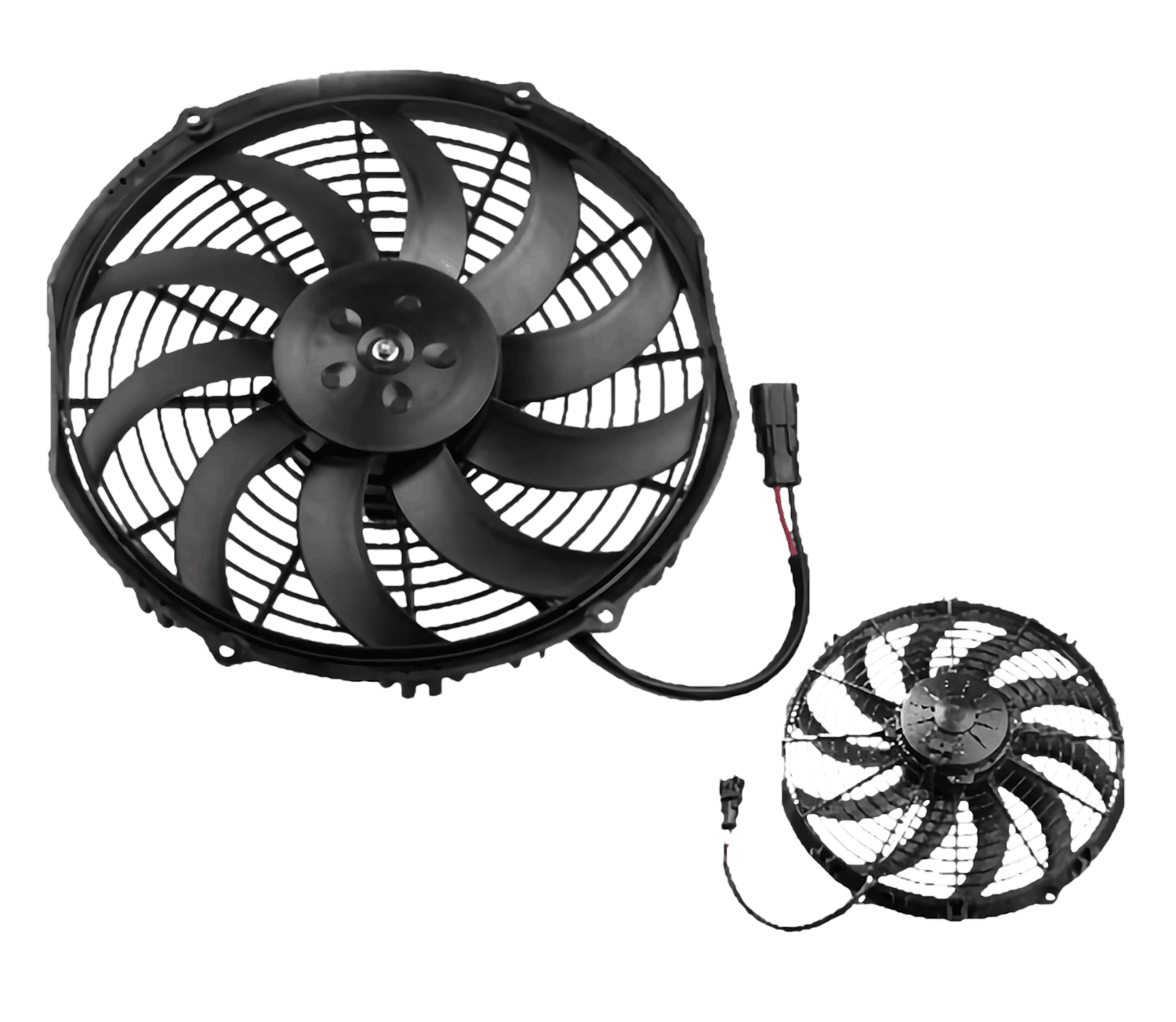

Tradewill can supply ASA and SPAL fans used in any mobile machinery,
including Concrete Mixers
