MotorsAxial Piston Motors SMF/MF 20–27
Swashplate Design, Fixed
Axial piston fixed motors of swashplate design with manifold block. Reliable, compact design. All parts interchangeable with original Sauer, produced by top quality European manufacturers. Easy maintenance and repair.
Key Features
- Axial piston fixed motor of swashplate design with manifold block
- Reliable, compact design
- All parts interchangeable with original Sauer
- Produced by top quality European manufacturers
- Easy maintenance and repair
Specifications
SMF/MF Motor Specifications
| Parameter | Dimension | FRAME SIZE | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 21 | 22 | 23 | 112 | 24 | 25 | 26 | 27 | ||
| Max. displacement per revolution | cm³ | 33,3 | 51,6 | 69,8 | 89,0 | 111,0 | 118,7 | 165,8 | 227,3 | 333,7 |
| Max. flow | dm³·min⁻¹ | 119,5 | 160,0 | 196,1 | 230,5 | 277,0 | 278,9 | 348,2 | 429,6 | 557,3 |
| Max. torque | Nm | 203 | 314 | 425 | 542 | 675 | ||||
| Max. pressure | MPa | 42 | ||||||||
| Nominal pressure | MPa | 21 | ||||||||
| Max. pressure of control | MPa | 3,5 | ||||||||
| Max. pressure in case | MPa | 0,25 continuous; 0,5 intermittent | ||||||||
| Maximum speed | min⁻¹ | 3590 | 3100 | 2810 | 2600 | 2600 | 2350 | 2100 | 1890 | 1670 |
| Minimum speed | min⁻¹ | 500 | ||||||||
| Nominal speed | min⁻¹ | 1500 | ||||||||
| Working liquid | mineral oil | |||||||||
| Operating outside temperature | °C | -40 to +50 | ||||||||
| Max. temperature of working fluid in tank | °C | 80 | ||||||||
| Purity of working fluid | μm | 10 | ||||||||
| Direction of shaft rotation | reversible | |||||||||
| Maximum swash plate angle | ° | ±18° | ||||||||
| Weight | kg | 30 | 35 | 40 | 47 | 50 | 70 | 124 | 152 | 197 |
Interested in this product?
Contact us for pricing, availability, and technical specifications.
Gallery

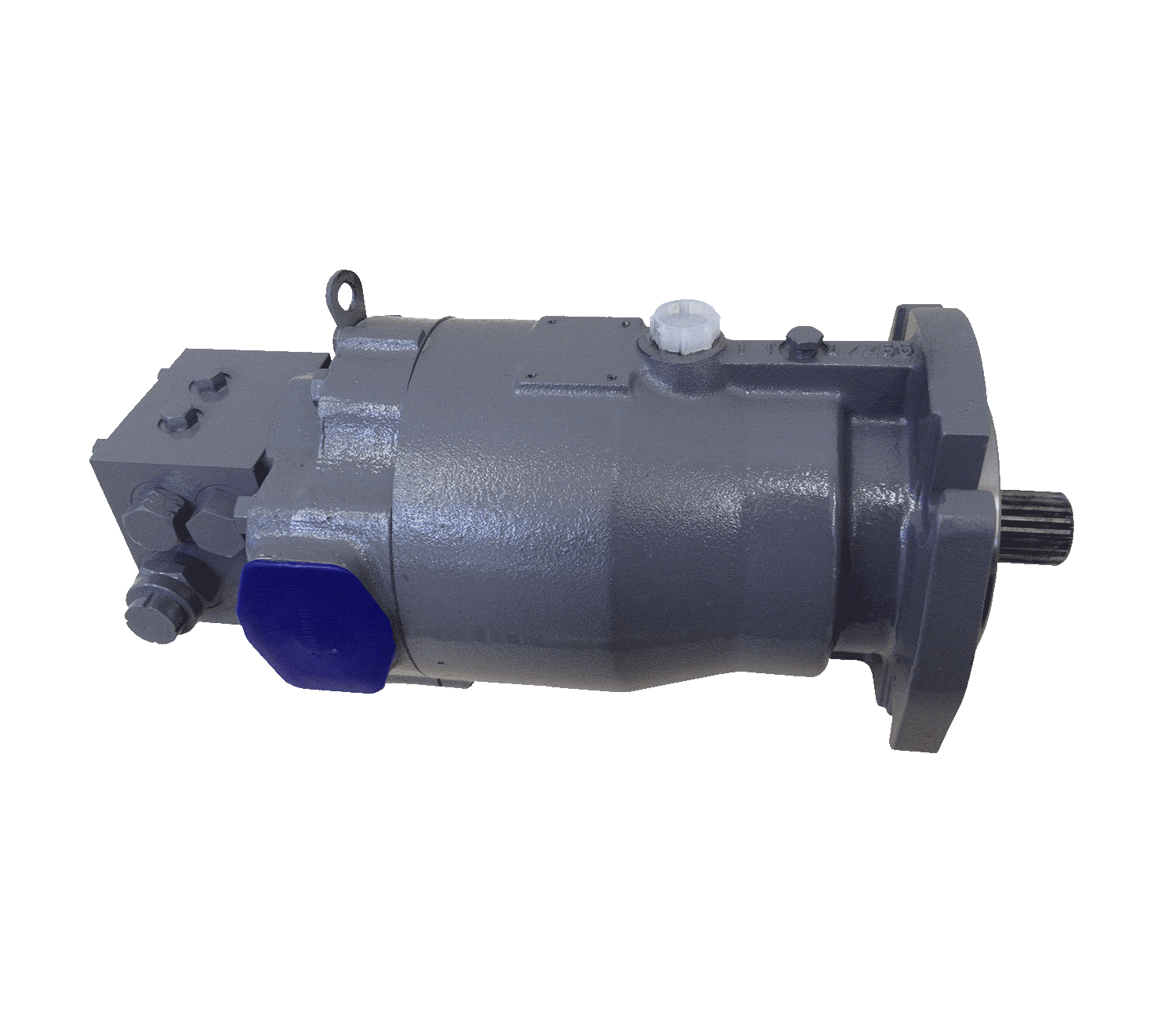

MF 23
MF 23

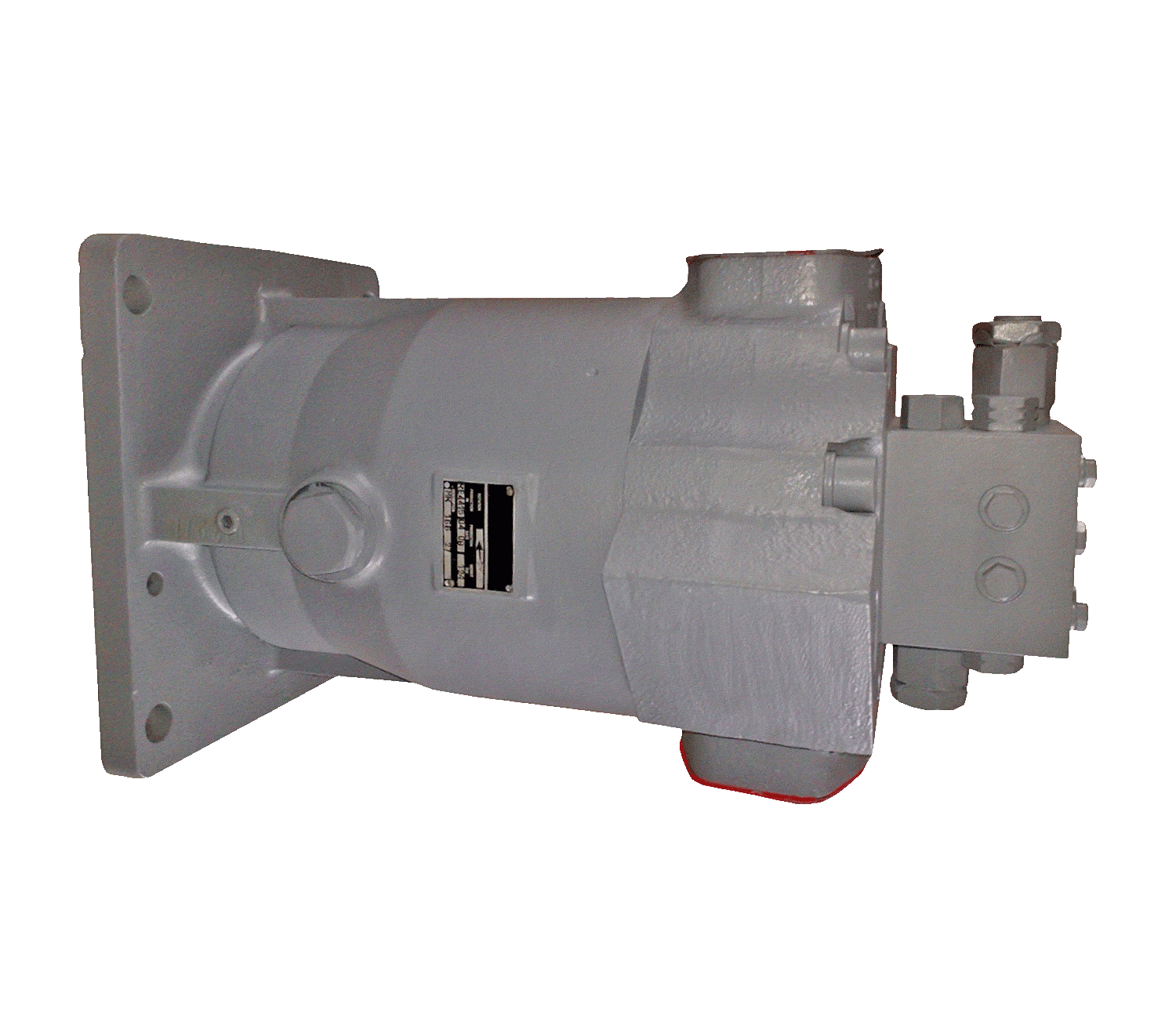

MF 25

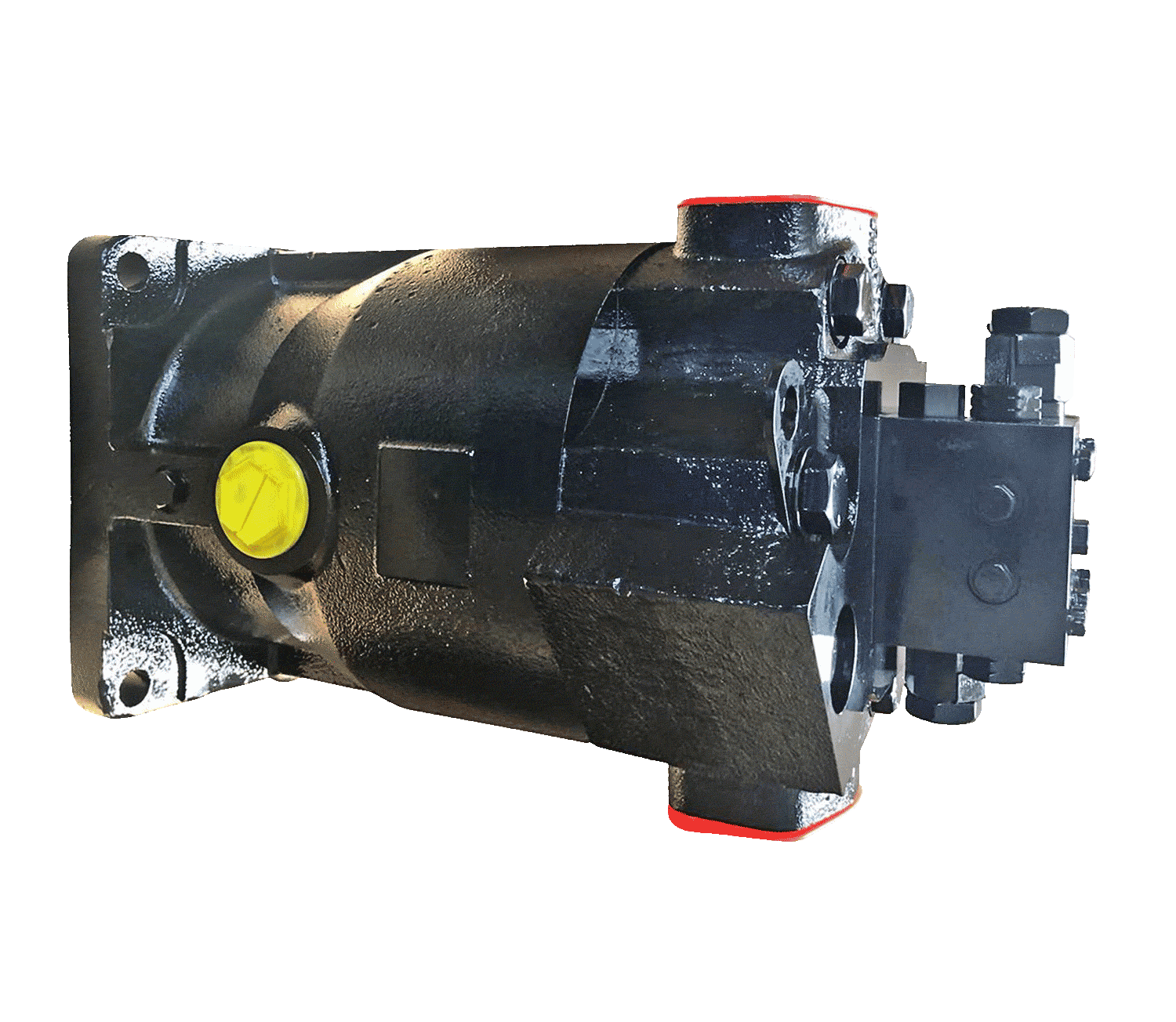

MF 26

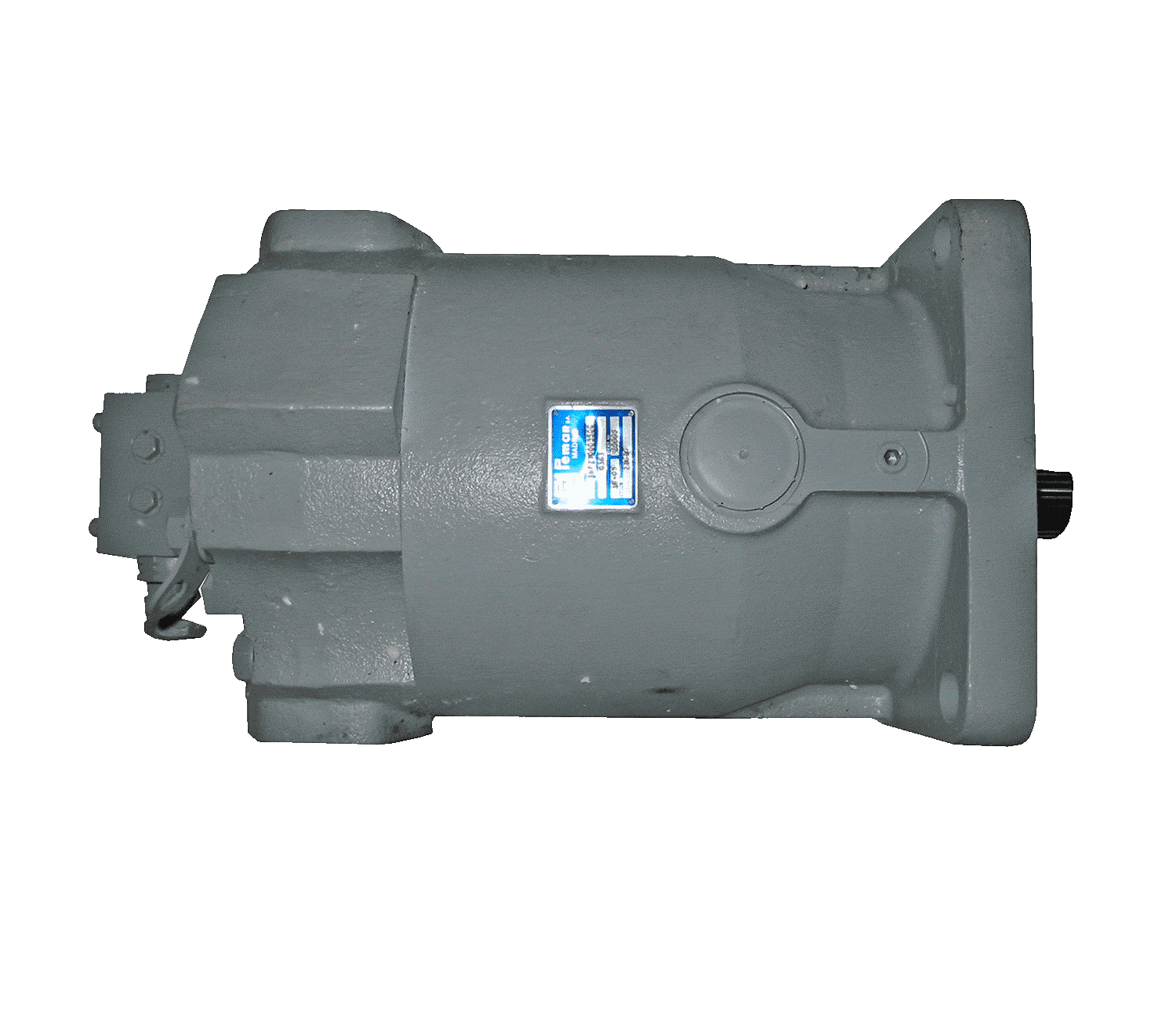

MF 27
